New Stadium Cornellà-El Prat – Rcde Stadium

Technology employed:

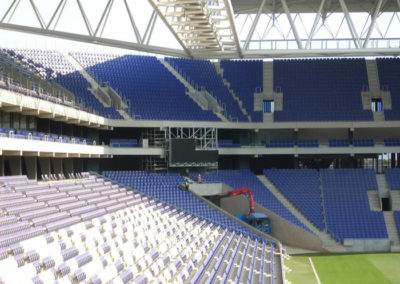

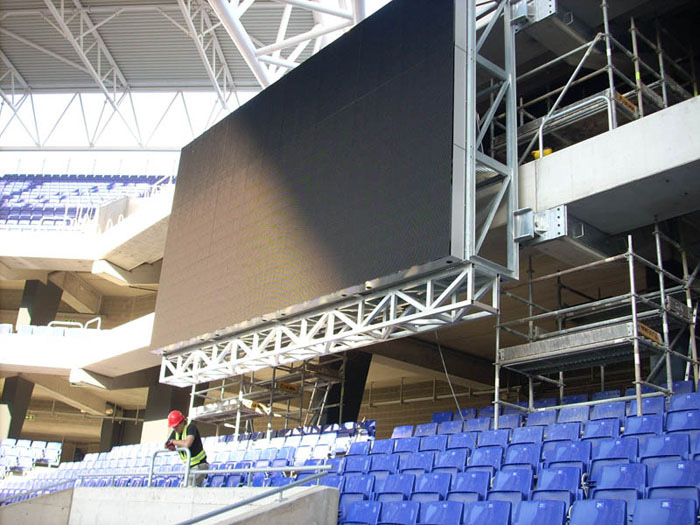

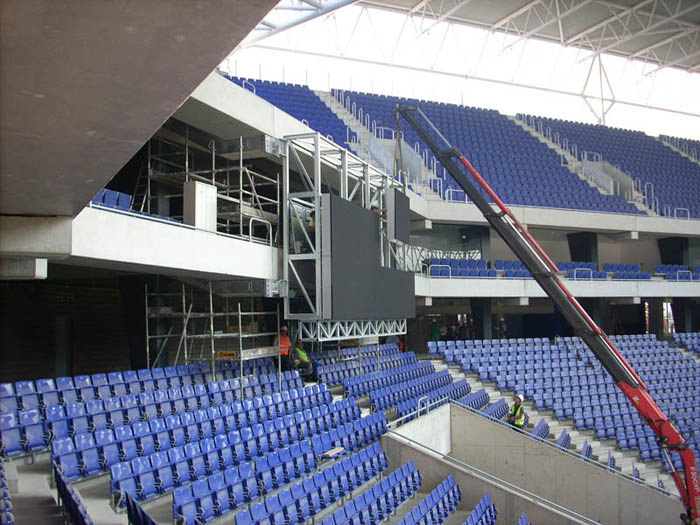

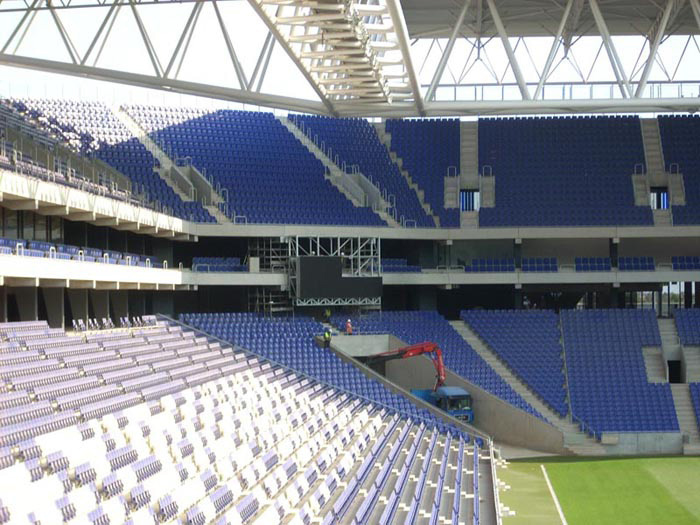

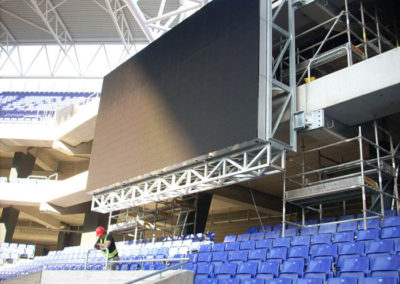

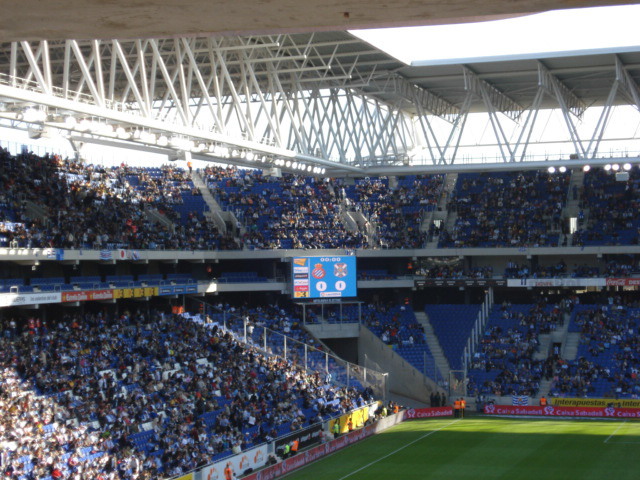

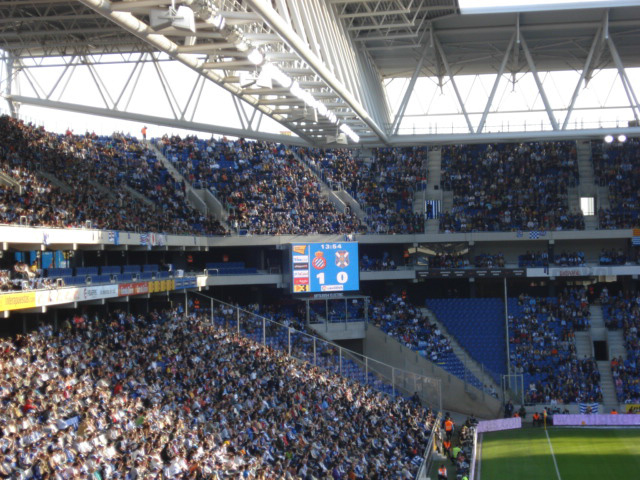

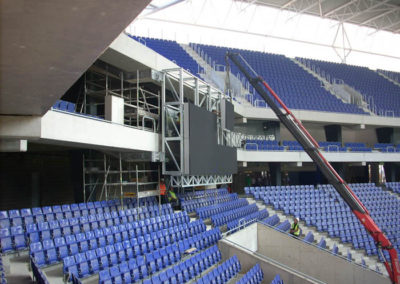

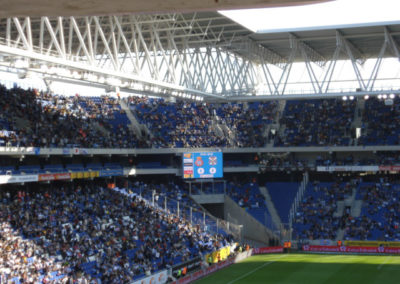

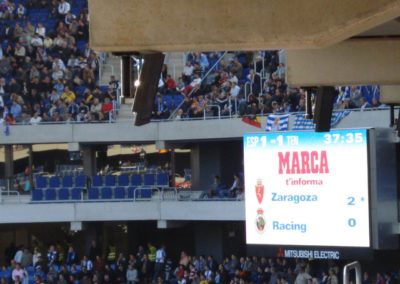

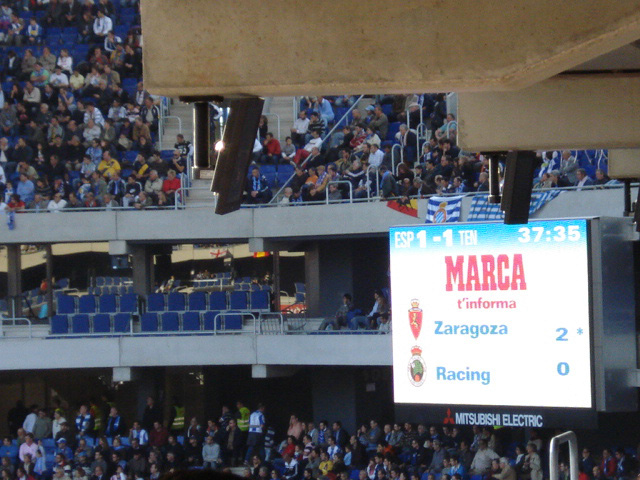

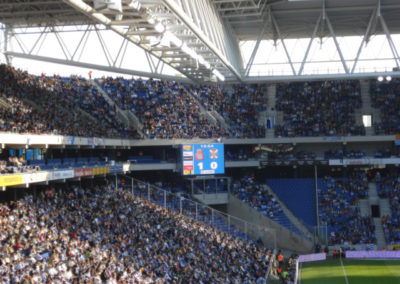

– LED screens: two 6.2×4.5 m outdoor screens. Two image control and management centers. Screen structure.

– Spectacular sound system: 40 speakers, 10 power stages, audio processor with priority for warnings and emergencies, interconnection with the auditorium and access corridors to the field.

– Public address for announcements and emergencies: 456 loudspeakers sounding nine public areas of the stadium and the closest outdoor area, management and control center with redundancy, control system.

– Auditorium: 4 press racks, conference system with 4 delegates and a president, amplification with priority of announcements and emergencies, wireless microphones.

– Interconnection of mobile units with control room: 3 sendings and 3 returns in HDSDI video through fiber optics, 4 sends and two audio returns through fiber optics, converters.

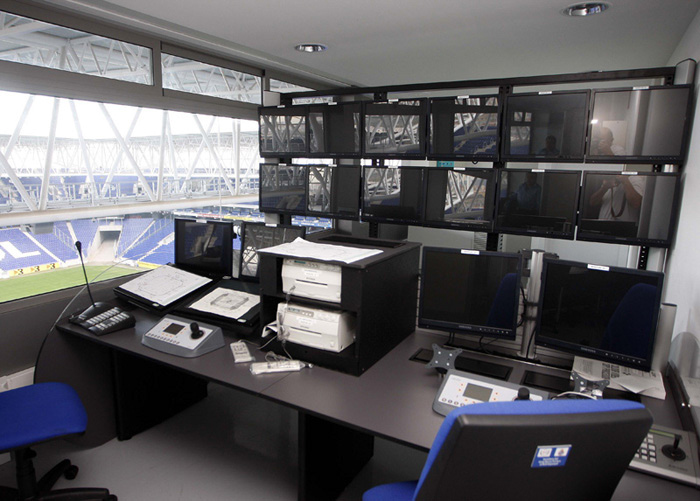

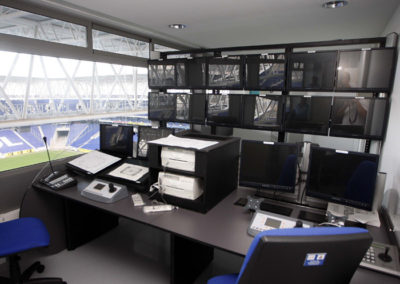

– Control room: image editing system, text editing software, game time management software, composite video and audio distributor.

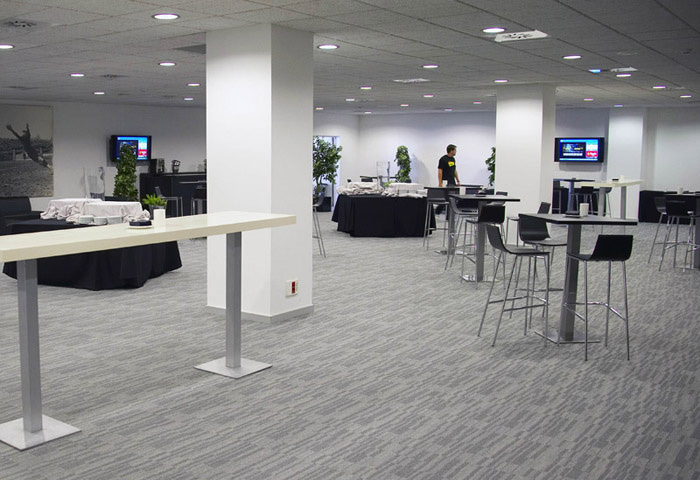

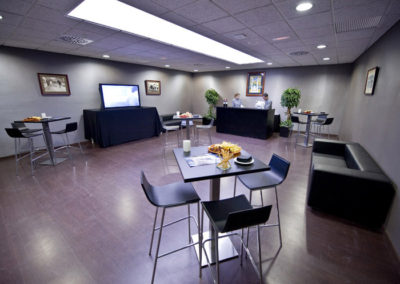

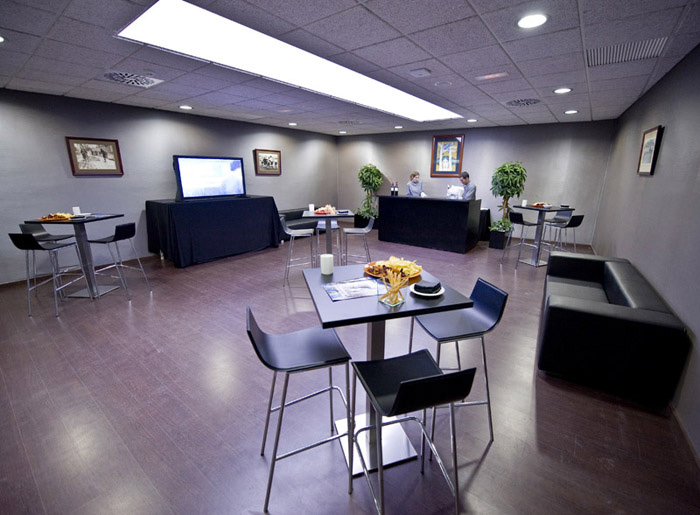

– Monitors for internal channel: 100 20 ” monitors, 36 32 ” monitors, 20 52 ” monitors and 2 of 50 ” monitors, housed in different rooms: boxes, VIP rooms, press booths, boardroom , control room, press room and member service point.

– Mobile equipment: projector, projection screen, public address and microphones.
